Adult Powered Wheelchairs

A200 Power Wheelchair

The most compact power wheelchair in its class

With the A200, you are flexible: The high-quality power wheelchair offers many adjustment options and can be adapted precisely to your personal requirements. Whether visiting friends, going away on a trip, or comfortably dining at a restaurant, the A200 power wheelchair offers great independence. The most compact power wheelchair in its class, it is only 57 centimetres in width, which ensures that you are mobile in the office or at home. In addition, the elegant design of the A200 received the reddot design award in 2005.

Benefits

Advantages to you

3084384

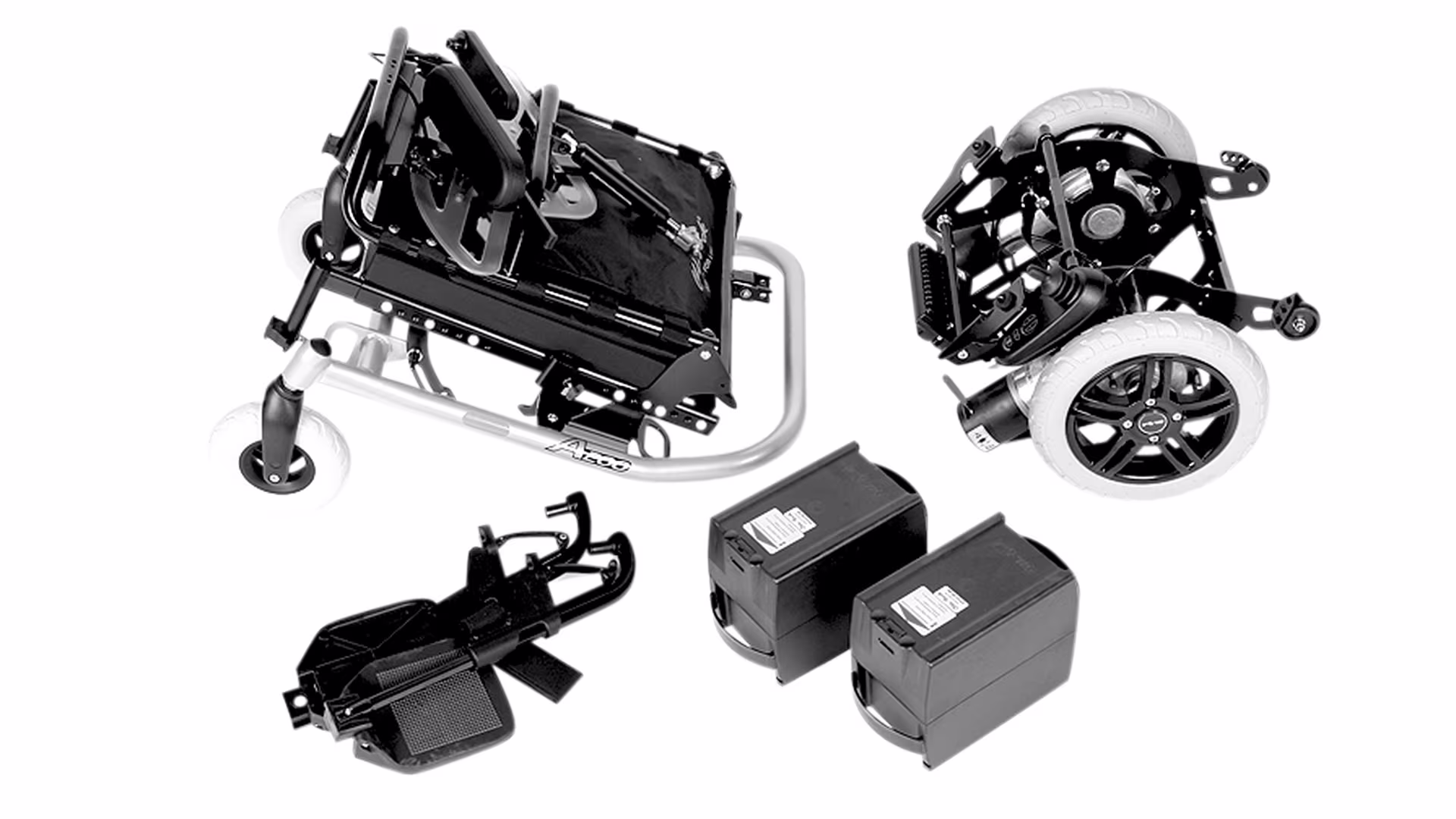

Stowed in the car in seconds

The A200 can be taken apart in just a few steps so that it even fits into the boot of a small car. The entire electronic system is integrated in a single box, allowing you to easily take the wheelchair with you on holiday.

The A200 can be taken apart in just a few steps so that it even fits into the boot of a small car. The entire electronic system is integrated in a single box, allowing you to easily take the wheelchair with you on holiday.

-18214 Kantensteig 169-4c wb

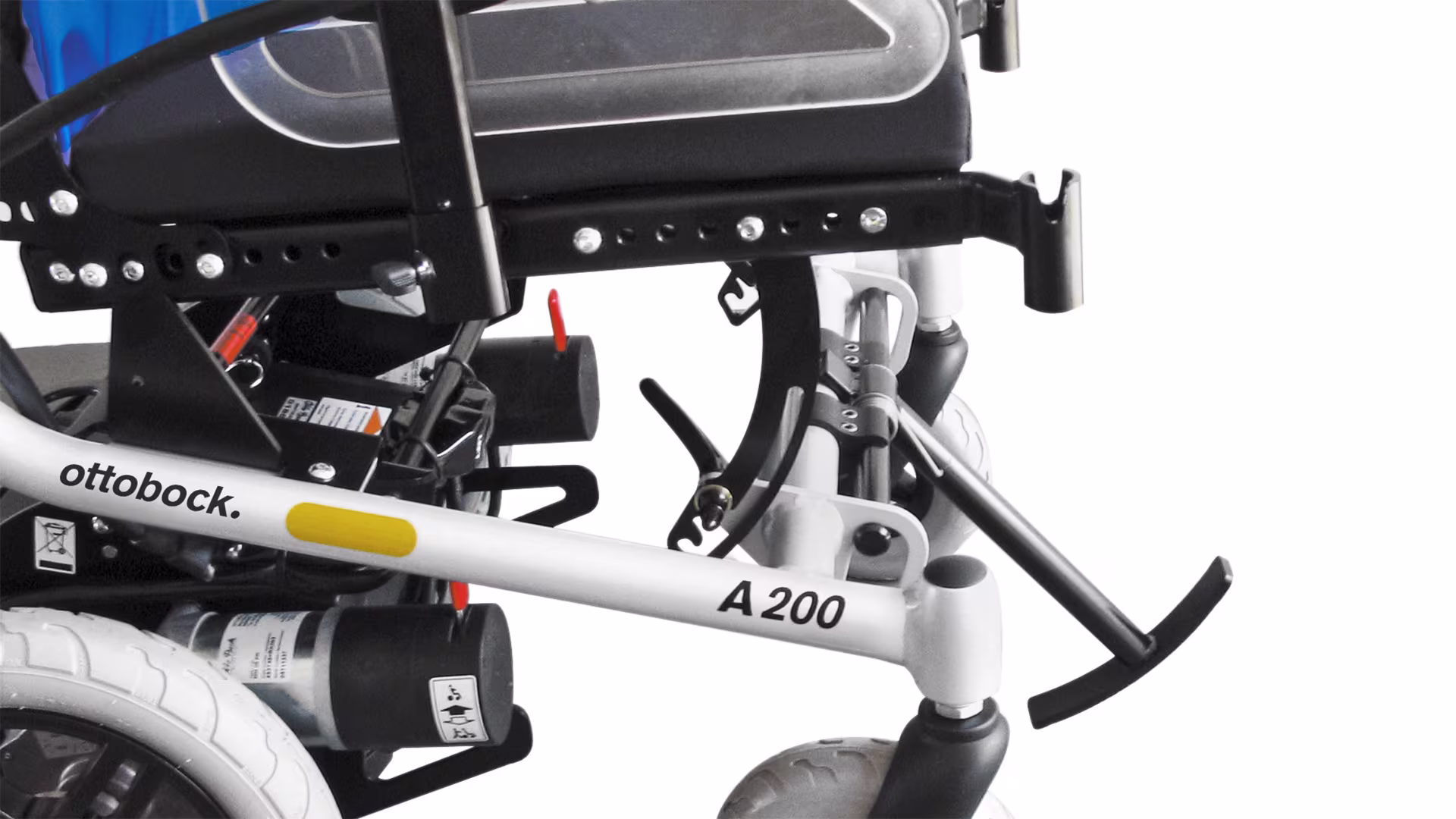

Narrow and manoeuvrable

This narrow and manoeuvrable power wheelchair allows you to get into corners and navigate around furniture without any problems in your house, at your friends, or at work. You can cross obstacles such as carpet edges up to a height of four centimetres safely, and with the optional curb climber you can climb up to approx. 8 cm.

This narrow and manoeuvrable power wheelchair allows you to get into corners and navigate around furniture without any problems in your house, at your friends, or at work. You can cross obstacles such as carpet edges up to a height of four centimetres safely, and with the optional curb climber you can climb up to approx. 8 cm.

-18906 D2 34614 sw 169-4c wb

Fully customisable

With the A200, you are flexible: The high-quality power wheelchair offers many adjustment options and can be adapted precisely to your personal requirements. This includes the ability to adjust the seat at three different angles and the back rest angle in various positions. Many other extras are available to equip the wheelchair further.

With the A200, you are flexible: The high-quality power wheelchair offers many adjustment options and can be adapted precisely to your personal requirements. This includes the ability to adjust the seat at three different angles and the back rest angle in various positions. Many other extras are available to equip the wheelchair further.

3 results out of 3

Technical Info

Technical Information

Technical Data

Dimensions

Frame Colour Options

Maximum speed: 6 km/h

Total width: 57 cm

Silver metallic

Battery capacity: 28 Ah

Total length without leg rests: 77 cm

Sparkle Red

Distance range approx: 20 km

Total length with leg rests: 100 cm

Maximum charging time: 12 h

Turning radius: 70 cm

Max. load: 100 kg

Seat height (seat plate 3°): 43 or 48 cm

Weight when empty: 66 kg

Seat width: 38 - 42 cm

Max. obstacle: 40 mm

Seat depth: 38 – 46 cm

Permissible ascent: 12 %

Armrest height: 24 – 36 cm

Seat inclination: 0°/3°/6°

Backrest height: 45/55 cm

Back angle: -9°/1°/11°/21° or 0°/10°/20°/30°

Backrest width: 40 cm

Lower leg length: 25 - 44 cm

Technology

Technology

-34242 2 79836 169-4c wb

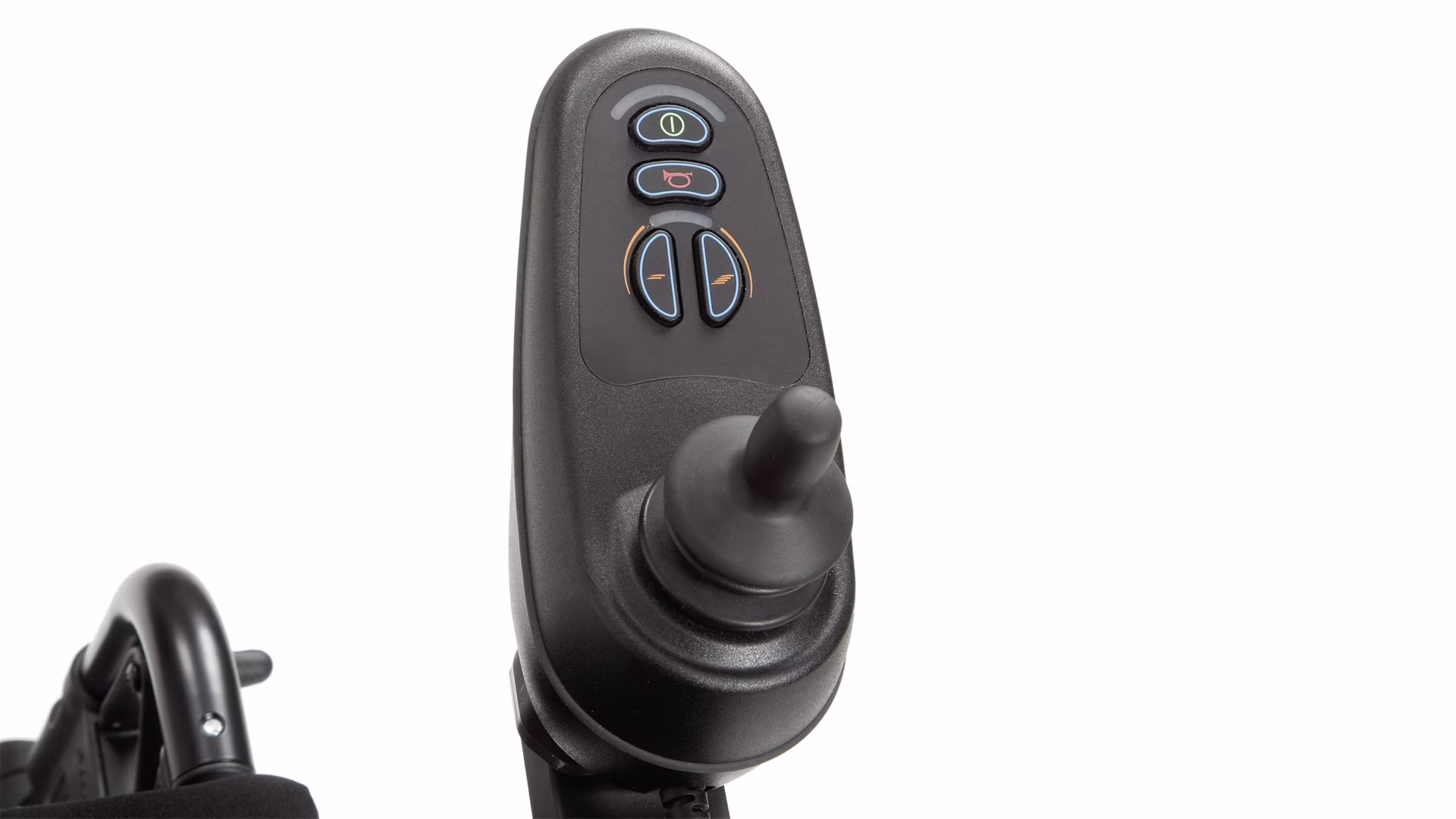

P&G VR2 Control

The VR2 sets new standards of performance and value for wheelchair controllers. The configuration comprises of a compact Power Module and an extremely well styled Joystick Module.

The VR2 sets new standards of performance and value for wheelchair controllers. The configuration comprises of a compact Power Module and an extremely well styled Joystick Module.

FirstSpiritExport,OBISCM-1557,web_site,mobility_1,complex,a200

Puncture proof tyres

Optional puncture-proof tyres provide peace of mind when driving over unpredictable terrain.

Optional puncture-proof tyres provide peace of mind when driving over unpredictable terrain.

FirstSpiritExport,OBISCM-1557,web_site,mobility_1,complex,a200

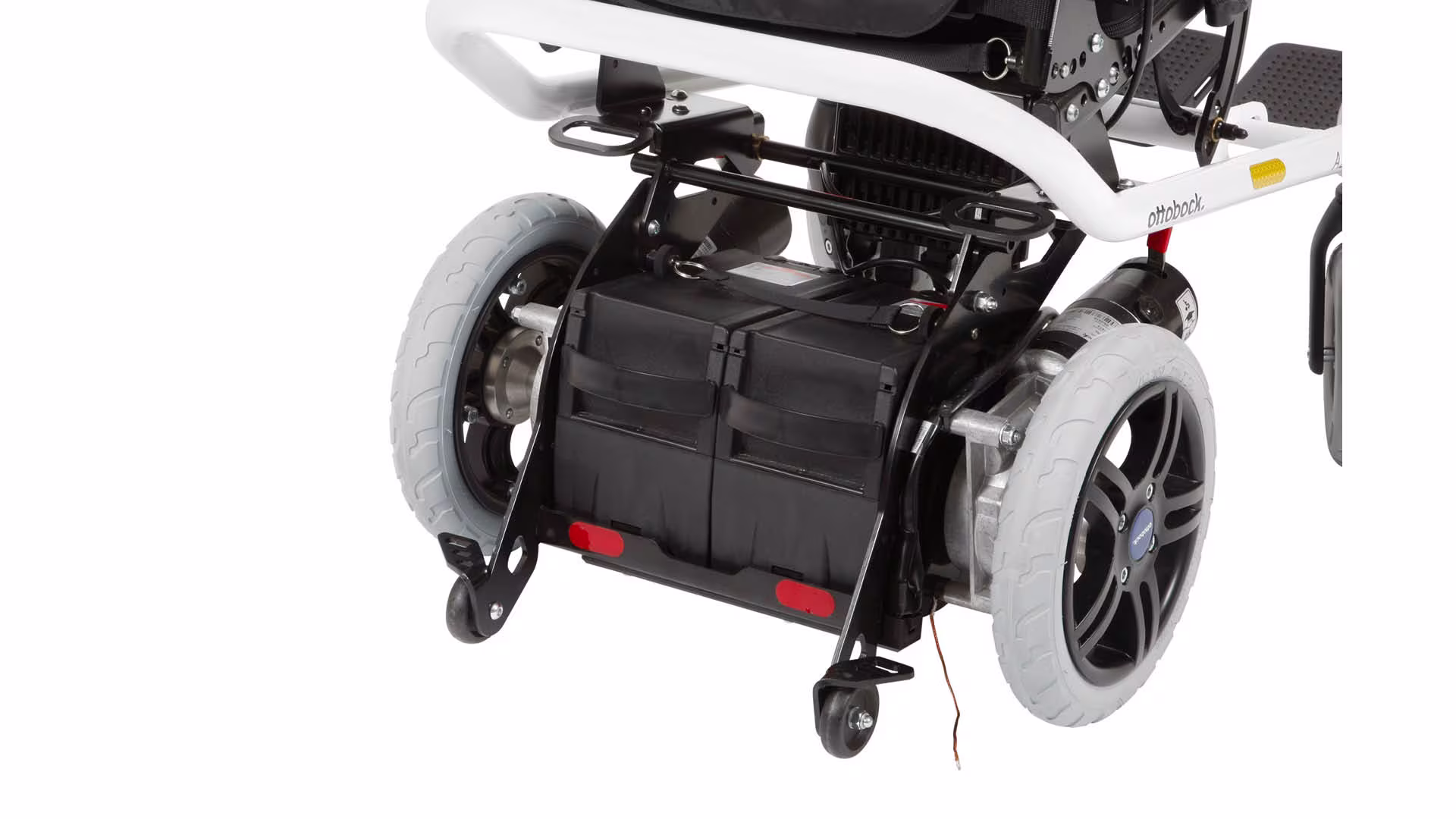

Easy to service

The A200 is compact and lightweight - with the entire electrical system neatly integrated in a single box. This makes service friendliness an integral part of the A200 concept.

The A200 is compact and lightweight - with the entire electrical system neatly integrated in a single box. This makes service friendliness an integral part of the A200 concept.
