Dino Wheelbase
Self propelling, aluminium wheelbase with a 30° tilt.

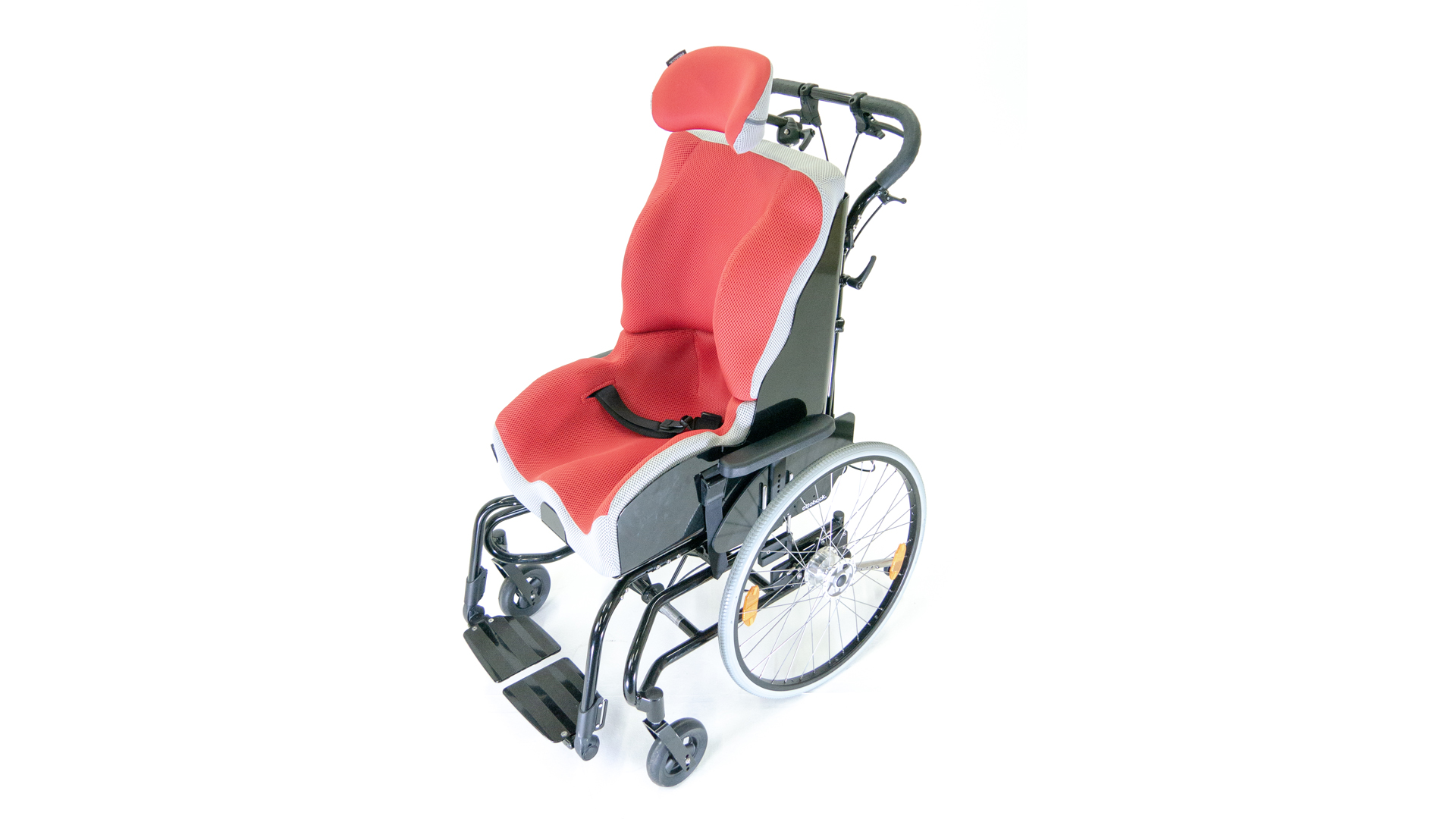

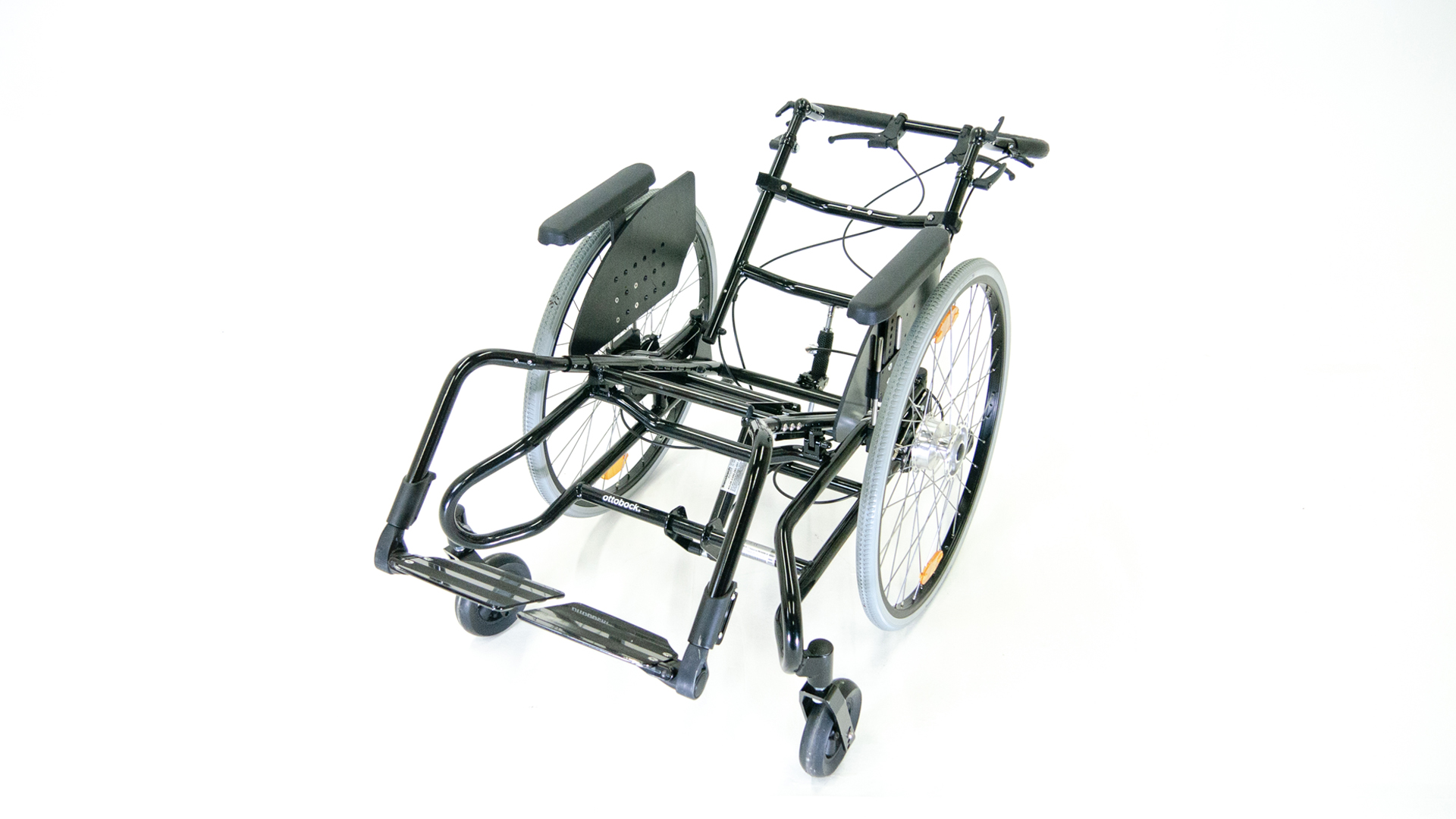

The Dino wheelbase is a lightweight, easy to push or self-propelling aluminium chassis for use with custom seating solutions.

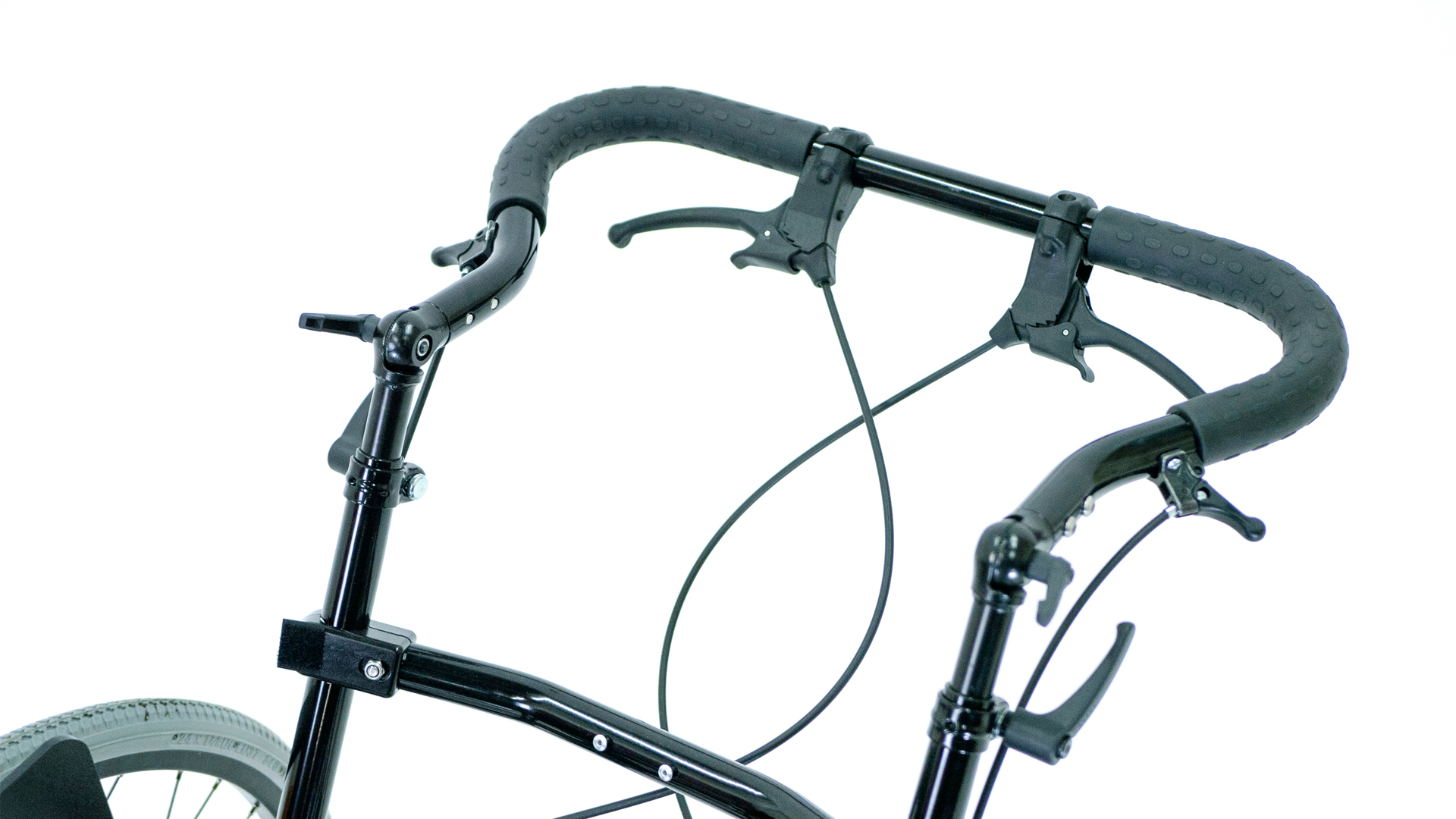

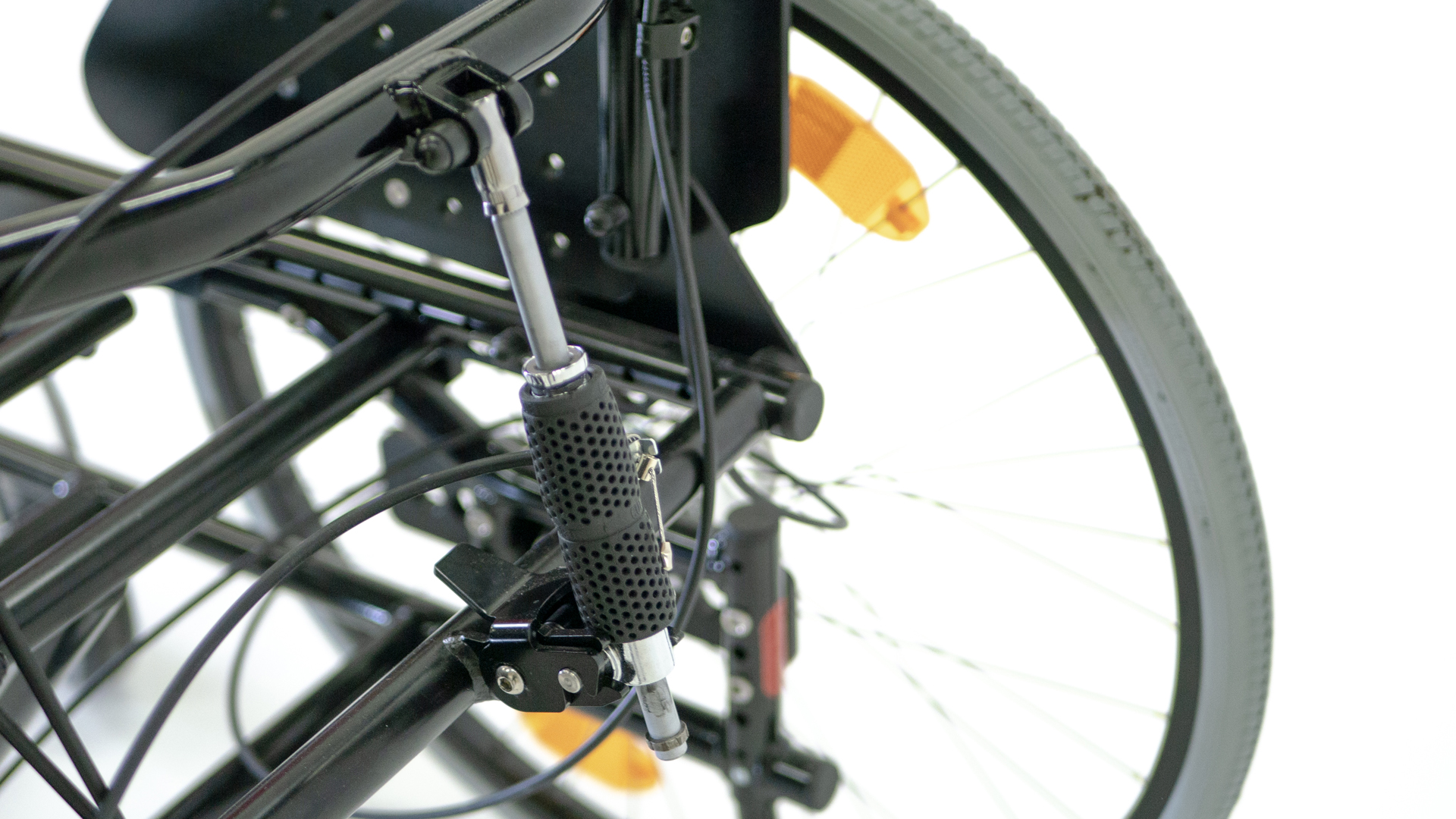

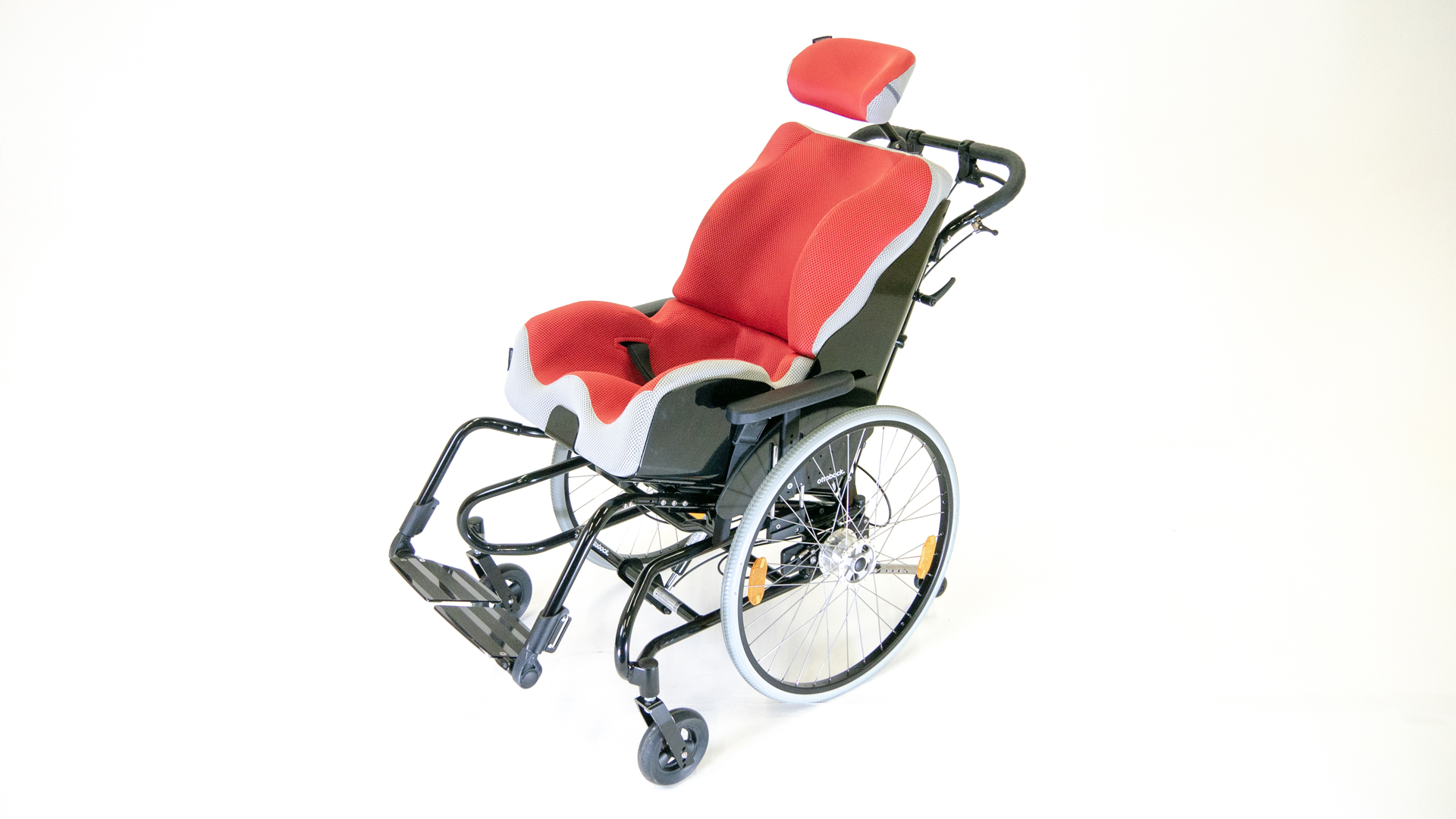

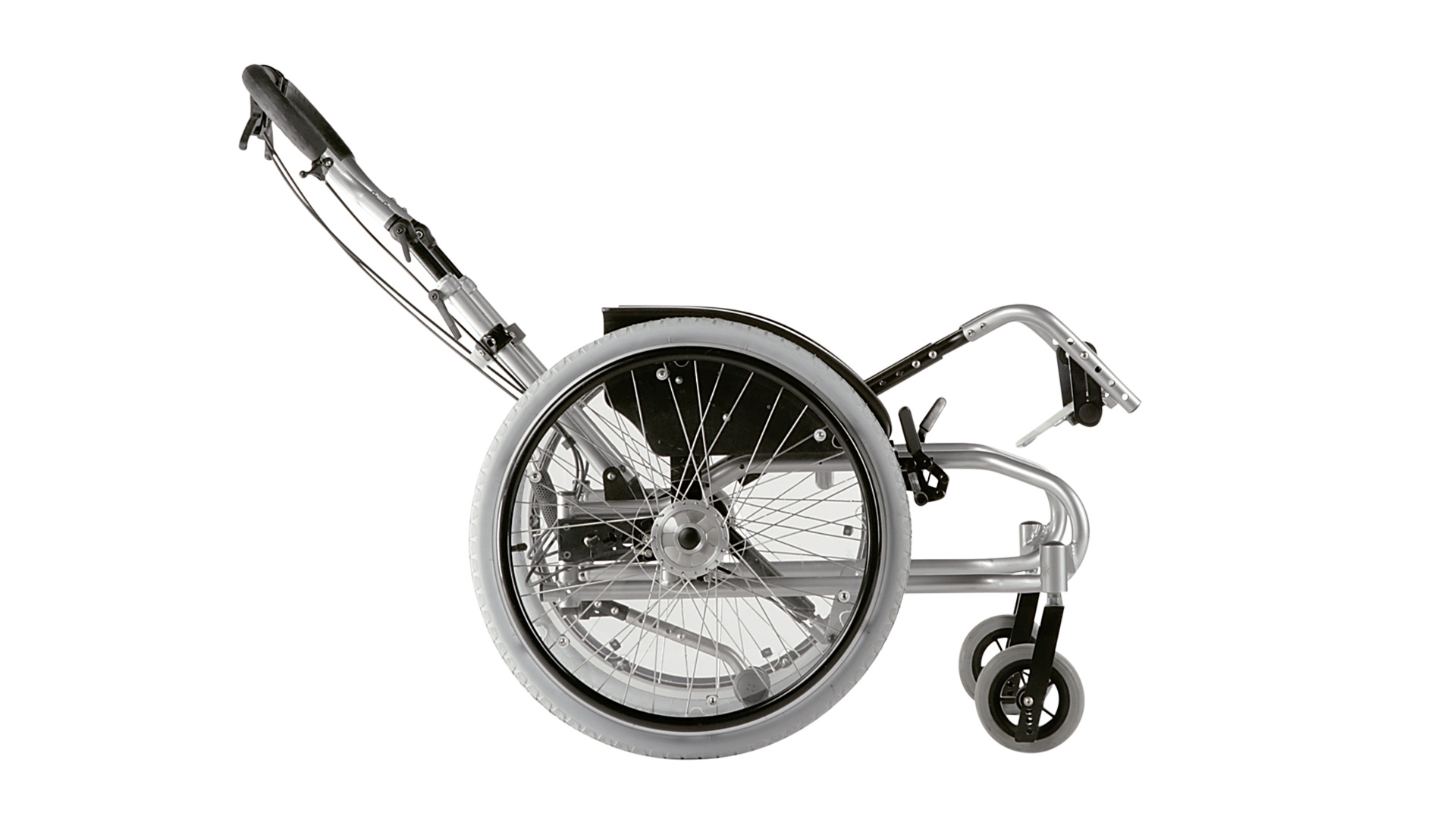

Whether your an attendant pushing the chair or in the chair yourself it is designed with comfort in mind. It has a height adjustable push bar and unique seat tilt of up to 30° with self propelling wheels.

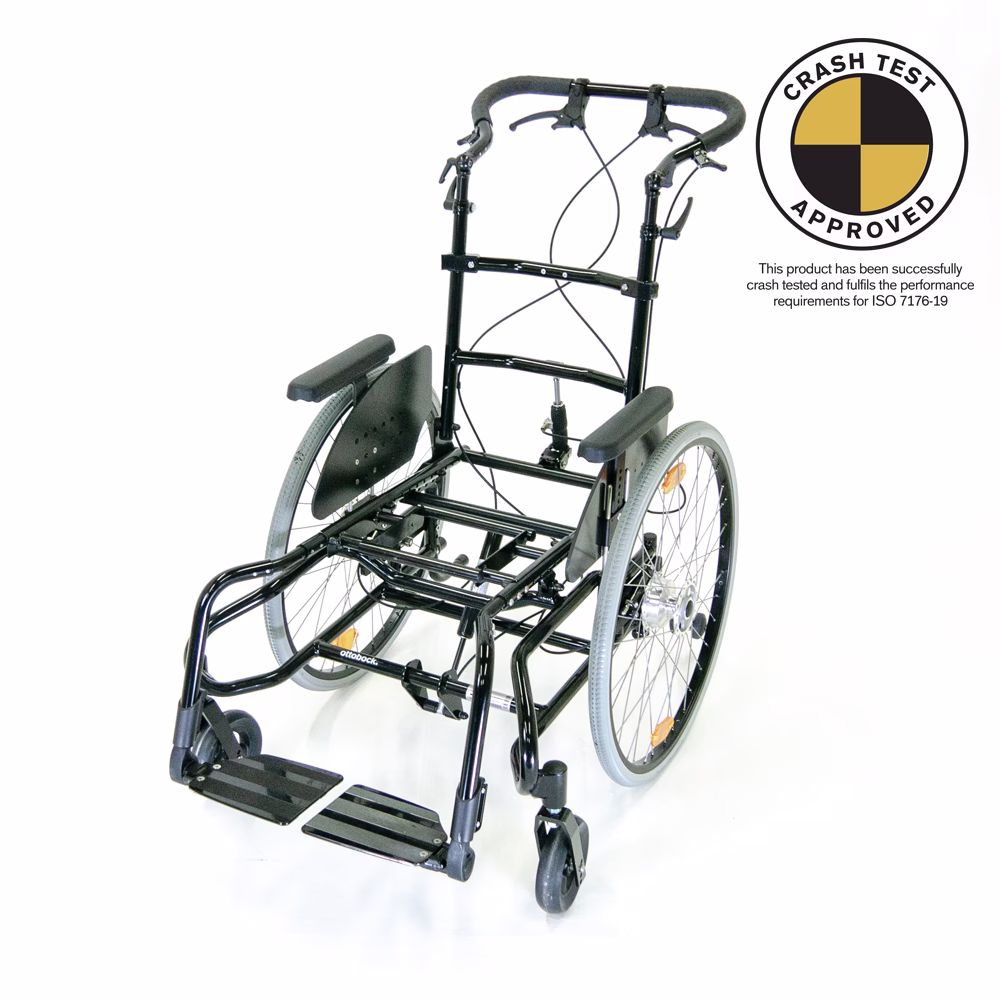

Transportation is made easy as this wheelbase is not only crash-tested but is also suitable for use as a seat in a vehicle and allows up to 120kg load capacity.

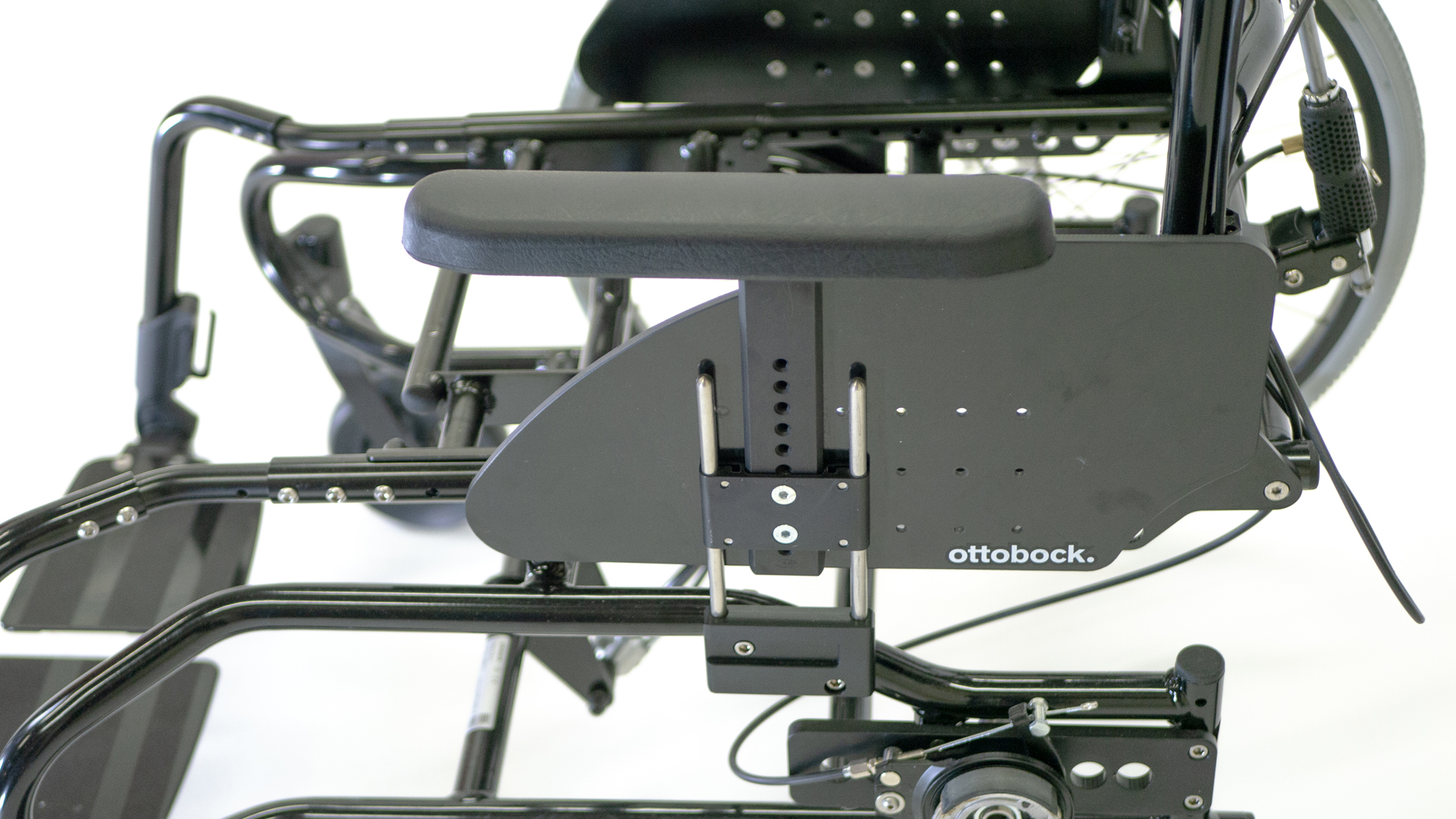

A range of options are available including; sides panels, arm rests, foot rests, rear wheels and a choice of colours.
Technical Data
| Size 0-300mm | Size 1-360mm |
|---|---|---|
Max Load Capacity | 120kg | 120kg |
Seat Depth (adaptable) | 365-440mm/415-490mm | 365-440mm/415-490mm |
Rear Wheels | 12" (transport chair) 22" or 24" (self propelled chair) | 12" (transport chair) 22" or 24" (self propelled chair) |
Seat Tube Height | 435-455mm | 460-480mm |
Seat Tilt | -5° to +30° | -5° to +30° |
Back Angle | 80° to 120° | 80° to 120° |
Push Handle Adjustable by | 150mm | 150mm |
Overall width with 12" wheels | 480mm | 540mm |
