Ottobock | Juvo B4

Introduction

Compact and robust.

The rear-wheel drive Juvo B4 power wheelchair is an ideal everyday companion. Offering enhanced safety and comfortable damping characteristics for outdoor use while still being compact and manoeuvrable indoors. The permanent drive wheel suspension increases comfort and compensates for uneven surfaces, while the wheelchair’s small outside dimension makes it easier to drive through narrow doorways and navigate in confined spaces. Like all models in the Juvo Family, the B4 has a modular design with a wide range of customisable options including various seat and driving controls, offering you a high level of design flexibility, and allowing you to personalise the Juvo B4 to your needs and requirements.

Book a Demonstration

Request more Info

Motability

Available through Motability

The Juvo B4 is available to lease through the Motability Scheme. The Motability Scheme provides an affordable and convenient way for disabled people and those with limited mobility to get mobile completely stress-free. All insurance, servicing, maintenance and repairs are included in the weekly price at no extra cost. Click below to discover more about the scheme and the Ottobock wheelchairs that are available.

Learn more about Motability

Features

Stand out features of the Juvo B4.

Luggage carrier

The optional luggage carrier is ideal for transporting luggage. The maximum load capacity is 15 kg.

Control Devices

Control devices for the Juvo B4.

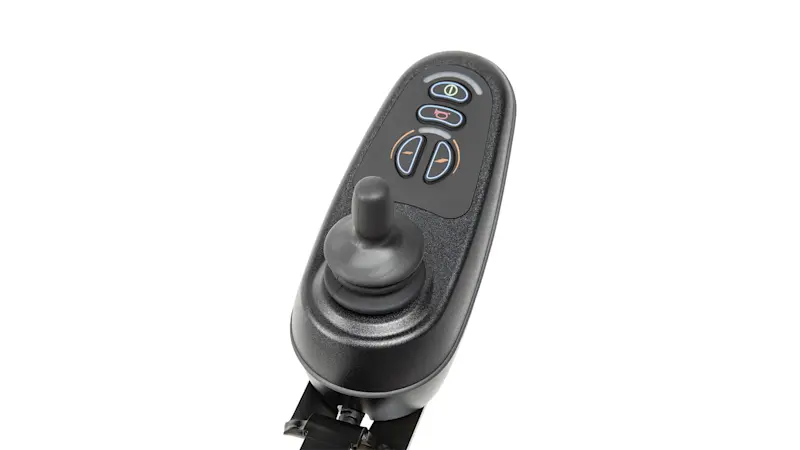

VR2

The tried-and-tested VR2 is our basic control device, which can be programmed to suit your personal needs. The control panel is divided into a keypad, two LED displays and a joystick. A charging receptacle is located on the underside.

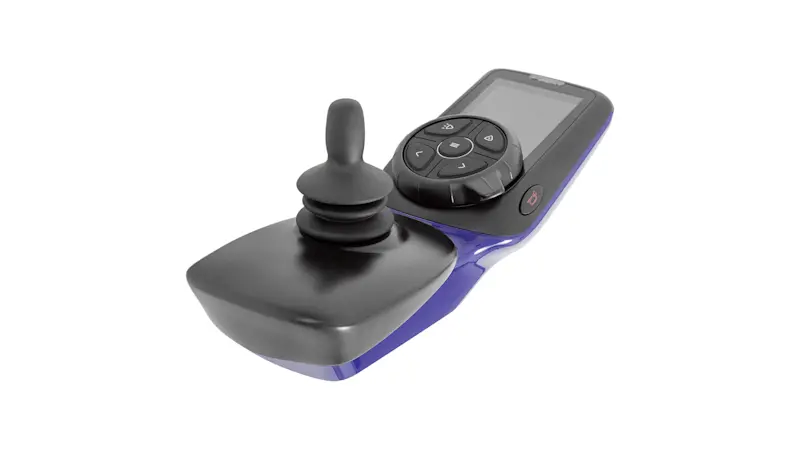

TEN°

The TEN° handheld control device leads to a small ergonomic revolution for you as a user. The soft hand support prevents premature fatigue and the innovative rotary control with 10° rotation angle makes it easier to access the speed regulations. In addition the high-resolution 3.5" colour display gives you a good overview of the user interface.

FirstSpiritExport,OBISCM-1557,web_site,mobility_1,complex,juvo_b4

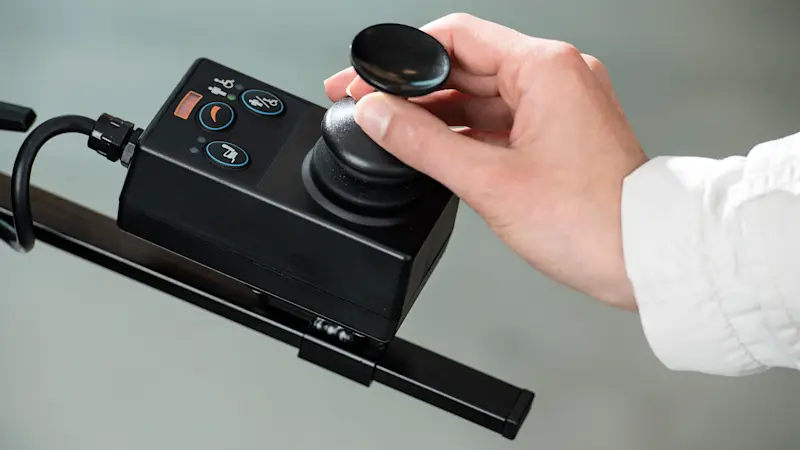

Attendant Control

The VR2 and TEN° control devices can be combined with an attendant control device. It can be positioned on the back of the wheelchair or on the left or right side. Another person can then provide assistance during driving and can also permit easy operation of the power seat adjustments.

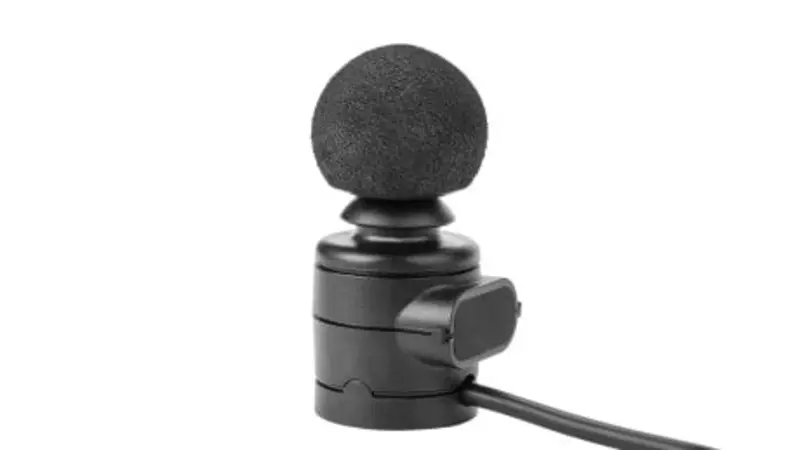

Special Controls

Alternative types of input can be used when standard joysticks don’t offer the best option. For example, the mini joystick is mounted on an electronic swivel arm for control with the chin or lips. The alternative types of control can be used to control the seat functions as well as your communication devices and home environment.

4 results out of 4

Benefits

Juvo B4's benefits for you.

Mobility base

The rear-wheel drive mobility base of the Juvo B4 is robust, durable and requires little maintenance. Driving through narrow doorways and navigating in confined spaces is made easier by the small outside dimension with a width of just 59 cm. Smaller wheel sizes are available for indoor use.

Magnetic LED lighting

In case of impacts, for example on door frames or furniture, the special magnetic holder protects the clear glass housing against damage or loss as the LED lighting simply hangs by the cable, making it easy to reinstall. This unique solution also allows the LED lamp to be used like a torch. Another plus for enhanced safety: when the Juvo B4 is switched on, the footpath lighting automatically illuminates dark environments.

Mobility base

The rear-wheel drive mobility base of the Juvo B4 is robust, durable and requires little maintenance. Driving through narrow doorways and navigating in confined spaces is made easier by the small outside dimension with a width of just 59 cm. Smaller wheel sizes are available for indoor use.

Drive wheel suspension

Permanent drive wheel suspension compensates for uneven surfaces and ensures enhanced safety and comfortable damping. This can be further optimised with an additional front suspension.

Anti-tipper rollers

Integrated anti-tipper rollers ensure enhanced safety and protect against damage when driving backwards.

Curb climbing assist

Curb climbing assist makes it possible to cross higher obstacles such as curbs. The curb climbing assist is mounted at the front in the centre, and is ready to use at any time while driving. When getting in and out, the lever can be engaged at the rear to provide more space for the transfer.

Power seat functions

The Juvo B4's power seat functions play a key role in your everyday independence. A seat tilt function up to 45° ensures the best possible pressure redistribution and position changes at any time, while back support angle adjustment can play an important role in breathing and care. A 35 cm seat height lift provides appropriate support to compensate for height differences during transfers or in other everyday situations, and for communication at eye level.

Magnetic LED lighting

In case of impacts, for example on door frames or furniture, the special magnetic holder protects the clear glass housing against damage or loss as the LED lighting simply hangs by the cable, making it easy to reinstall. This unique solution also allows the LED lamp to be used like a torch. Another plus for enhanced safety: when the Juvo B4 is switched on, the footpath lighting automatically illuminates dark environments.

Mobility base

The rear-wheel drive mobility base of the Juvo B4 is robust, durable and requires little maintenance. Driving through narrow doorways and navigating in confined spaces is made easier by the small outside dimension with a width of just 59 cm. Smaller wheel sizes are available for indoor use.

Previous slide

Next slide

Seating Solutions

Juvo B4 seating solutions.

Standard Seat

The standard Juvo B4 seat can be adjusted via the arm supports. The side panels provide stable support and the height and depth of the soft arm support pads can be adjusted to suit your needs. There is also the option to have the manually adjustable 30° back support to be power operated if you choose. The back support frame can be folded forward onto the seat bottom for storage or transportation and there is a variety of leg supports that can be selected.

Standard Seat

The standard Juvo B4 seat can be adjusted via the arm supports. The side panels provide stable support and the height and depth of the soft arm support pads can be adjusted to suit your needs. There is also the option to have the manually adjustable 30° back support to be power operated if you choose. The back support frame can be folded forward onto the seat bottom for storage or transportation and there is a variety of leg supports that can be selected.

Variably Adjustable Seat (VAS)

The VAS (Variably Adjustable Seat) can be adjusted down to the centimetre. It comes with an adjustable padded back support and a flat seat cushion as standard. The Ergo Joint back support angle adjustment is almost entirely free from uncomfortable shear forces. Elevating arm supports and a broad range of leg rest versions are optionally available.

Contour Package

Our collaboration with physiotherapists and occupational therapists has resulted in an optimally shaped seat which is available in a wide range of sizes and contours. The front seat base is formed by the anatomically shaped seat surface, which offers a high level of lateral stability. Moulded to the shape of the thigh, the cushion helps relieve the hip joints. An integrated “ramp” also aids the optimal positioning of the pelvis. Together with the back support pad, it helps to actively straighten the pelvis. Both components of the contour package can be combined with the standard and VAS seating solutions.

FirstSpiritExport,OBISCM-1557,web_site,mobility_1,sitzen_und_positionieren,baxx

Baxx Line

The Baxx line consists of ergonomically shaped, rigid back shells offering you a high level of stability and sitting comfort for everyday use. Two different heights and three contours allow for individual adaptation to your requirements. The top of the back is padded to make sitting especially comfortable. Large recesses in the back shell make it lightweight and improve
the sitting “climate” thanks to good ventilation. The aluminium back shell is available in a variety of colours. The Baxx line products can be combined with the VAS.

Shape Custom Contoured Seating

Shape Seating Systems are the only solution for patients with complex needs as the design and accessories can be fully customised to suit the needs of the user.

Discover our Custom Seating Systems

Technical Data

Technical Data.

Speeds	6/7.2/10 kmph
Rated battery capacity	AGM 53 Ah (C5), 62 Ah (C20) Gel 63 Ah (C5), 74Ah (C20)
Driving distance ranges (according to ISO 7176-4)	up to 35 km with AGM battery 53 Ah (C5), 62 Ah (C20) up to 45 km with gel battery 63 Ah (C5), 74 Ah (C20)
Control device	VR2 or TEN°
Max. load	160 kg
Obstacle height the wheelchair is able to overcome	50, 85 or 90 mm optional
Climbing ability (according to ISO 7176-2)	7° (12%)
Overall width	585-595 mm
Min. turning radius (acc. to ISO 7176-5)	from 800 mm
Seat height (depending on seating solution)	410-570 mm
Seat width	340-560 mm
Seat depth	340-580 mm
Back support angle	-9° to +30° mechanical 0° to +30° power
Seat tilt	20°/45° power
Seat inclination	-3° / 0° / 3° / 6° / 9°
Back support height	370-550 mm
Arm support height	200-400 mm
Lower leg length	150-540 mm
Max. charging time	12 h
Weight when empty	from 93.5 kg
